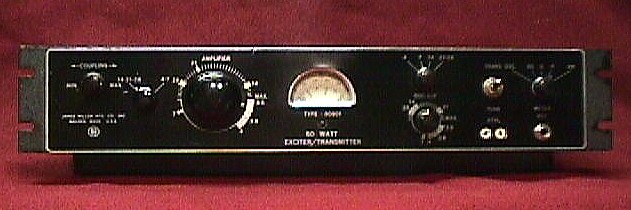

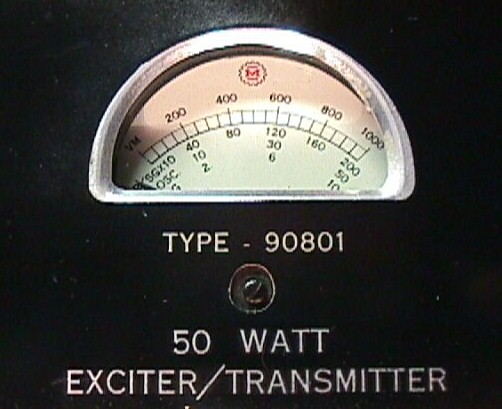

90801 Exciter-Transmitter
|
This is the replacement for the 90800 50 Watt transmitter. Based on a transmitter
design that made its appearance in the December 1952 issue of the ARRL QST Magazine.
The original Millen schematic indicate a design date of July 1953. As a replacement
for the 90800 it does have some similarities, such as size, power, number of tubes
